Span Types for the Nora Observability Python SDK

Span Types

The span_type parameter categorizes operations. Types are case-insensitive and converted to lowercase internally.

Available Span Types

Decision-Generating Types:

llm: Language model calls
rag: Retrieval-augmented generation
tool: Tool or function execution
select: Selection from options
retrieval: Data retrieval

Reference Types:

workflow: End-to-end process
agent: Agent-specific operations
router: Routing logic
policy_eval: Policy evaluation
Custom types are allowed

Decision Generation Requirements

A decision represents a choice made during execution. Functions must return data in specific formats to generate decisions.

For rag and tool types:

return {
    "options": [
        {"content": "Option 1 text", "score": 0.95},
        {"content": "Option 2 text", "score": 0.87},
        {"content": "Option 3 text"}
    ]
}

The score field is optional.

For select type:

def select_best(documents):
    # documents parameter becomes options automatically

    return {
        "content": "Selected document text",
        "score": 0.92
    }

Input should be a list of options. Output should be the selected option with content and optional score.

For llm type:

When tools are provided to an LLM call, they automatically become options. The tool actually invoked becomes the selected option. No manual formatting is needed.

tools = [
    {
        "type": "function",
        "function": {
            "name": "get_weather",
            "description": "Get weather information"
        }
    },
    {
        "type": "function",
        "function": {
            "name": "search_database",
            "description": "Search database"
        }
    }
]

response = client.responses.create(
    model="gpt-5",
    input=[
        {
            "role": "user",
            "content": "What's the weather in Seoul?"
        }
    ],
    tools=tools,
    tool_choice="auto"
)

This automatically generates:

options: [{"content": "get_weather", "score": null}, {"content": "search_database", "score": null}]
selected_option: [{"content": "get_weather", "score": null}]

For retrieval type:

No specific format required for general retrieval. To generate decisions, use the same format as rag with options.

Understanding Execution Spans and Decisions

Execution Span:

An execution span records the execution of a function decorated with @nora_client.trace(). It captures input, output, duration, and errors. Execution spans are only created inside trace groups.

Decision:

A decision is extracted from an execution span when the span represents a choice between options. Decisions track which option was selected during execution. Examples include which tool an LLM chose or which document was selected from a RAG retrieval.

Decisions require the input/output format described above.

Structure:

trace_group
  ├─ execution_span (function execution)
  │   └─ decision (if applicable)
  ├─ execution_span
  │   └─ decision
  └─ llm_call (automatically tracked)

RAG Example

import nora
from openai import OpenAI

nora_client = nora.init(api_key="your-nora-api-key")
client = OpenAI(api_key="your-openai-key")

@nora_client.trace(span_type="retrieval", name="DocumentRetrieval")
def retrieve_documents(query):
    documents = [
        "AI is a branch of computer science focused on creating intelligent machines.",
        "Machine learning is a subset of AI that enables systems to learn from data.",
        "Deep learning uses neural networks with multiple layers."
    ]
    return documents

@nora_client.trace(span_type="llm", name="GenerateAnswer")
def generate_answer(query, context):
    context_text = "\n".join(context)

    response = client.responses.create(
        model="gpt-5",
        input=[
            {
                "role": "system",
                "content": f"Context:\n{context_text}"
            },
            {
                "role": "user",
                "content": query
            }
        ]
    )
    return response.output_text

@nora_client.trace_group(name="RAG_Pipeline", metadata={"type": "WORKFLOW"})
def rag_pipeline(query):
    documents = retrieve_documents(query)
    answer = generate_answer(query, documents)

    return answer

result = rag_pipeline("What is machine learning?")
print(result)

Routing and Policy Evaluation

import nora
from openai import OpenAI

nora_client = nora.init(api_key="your-nora-api-key")
client = OpenAI(api_key="your-openai-key")

@nora_client.trace(span_type="router", name="IntentRouter")
def route_by_intent(user_message):
    response = client.responses.create(
        model="gpt-5",
        input=[
            {
                "role": "system",
                "content": "Classify intent. Reply with one of: support, sales, general."
            },
            {
                "role": "user",
                "content": user_message
            }
        ]
    )

    intent = response.output_text.strip().lower()
    return intent

@nora_client.trace(span_type="policy_eval", name="ContentPolicy")
def check_content_policy(message):
    response = client.responses.create(
        model="gpt-5",
        input=[
            {
                "role": "system",
                "content": "Check if the message violates policy. Reply with: safe or unsafe."
            },
            {
                "role": "user",
                "content": message
            }
        ]
    )

    result = response.output_text.strip().lower()
    return result == "safe"

@nora_client.trace(span_type="agent", name="SupportAgent")
def support_agent(message):
    return "Support team will contact you."

@nora_client.trace(span_type="agent", name="SalesAgent")
def sales_agent(message):
    return "Let me help you with pricing."

@nora_client.trace_group(name="SmartRouter")
def smart_routing(user_message):
    is_safe = check_content_policy(user_message)
    if not is_safe:
        return "Message flagged by content policy."

    intent = route_by_intent(user_message)

    if intent == "support":
        return support_agent(user_message)
    elif intent == "sales":
        return sales_agent(user_message)
    else:
        return "How can I help you today?"

result = smart_routing("I need help with my account")
print(result)

Complex Workflow Example

import nora
from openai import OpenAI

nora_client = nora.init(api_key="your-nora-api-key")
client = OpenAI(api_key="your-openai-key")

@nora_client.trace(span_type="retrieval", name="FetchUserHistory")
def fetch_user_history(user_id):
    return {
        "user_id": user_id,
        "recent_queries": ["AI trends", "ML frameworks"],
        "preferences": ["technical", "detailed"]
    }

@nora_client.trace(span_type="retrieval", name="SearchKnowledgeBase")
def search_knowledge_base(query, context):
    return [
        "Document about AI trends 2024",
        "Latest ML frameworks comparison"
    ]

@nora_client.trace(span_type="llm", name="SynthesizeResponse")
def synthesize_response(query, documents, user_context):
    prompt = f"""
User preferences: {user_context['preferences']}
Recent queries: {user_context['recent_queries']}

Documents:
{chr(10).join(documents)}

Question: {query}
"""

    response = client.responses.create(
        model="gpt-5",
        input=[
            {
                "role": "user",
                "content": prompt
            }
        ],
        max_output_tokens=300
    )

    return response.output_text

@nora_client.trace(span_type="tool", name="FormatMarkdown")
def format_as_markdown(text):
    return f"# AI Assistant Response\n\n{text}"

@nora_client.trace_group(name="PersonalizedQA_Workflow", metadata={"type": "WORKFLOW"})
def personalized_qa(user_id, query):
    user_context = fetch_user_history(user_id)
    documents = search_knowledge_base(query, user_context)
    response = synthesize_response(query, documents, user_context)
    formatted = format_as_markdown(response)

    return formatted

result = personalized_qa("user_123", "What are the latest AI trends?")
print(result)

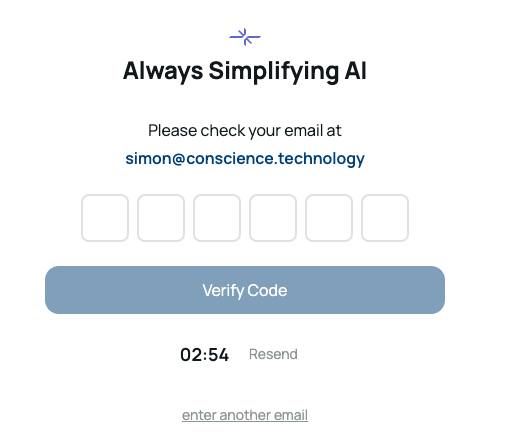

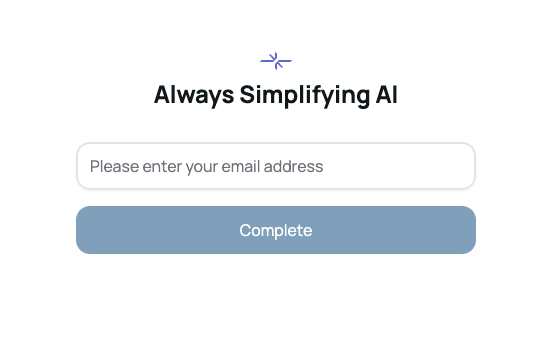

Create an account and API key
